en spfc-007
Beecore F3 1S brushless flight controller with OSD and ESC 4 in 1
In stock
Warning: Last items in stock!
Availability date: 2018-11-10
FC Beecore F3 1S OSD

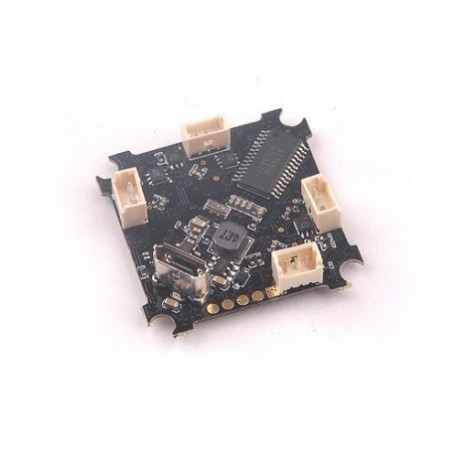

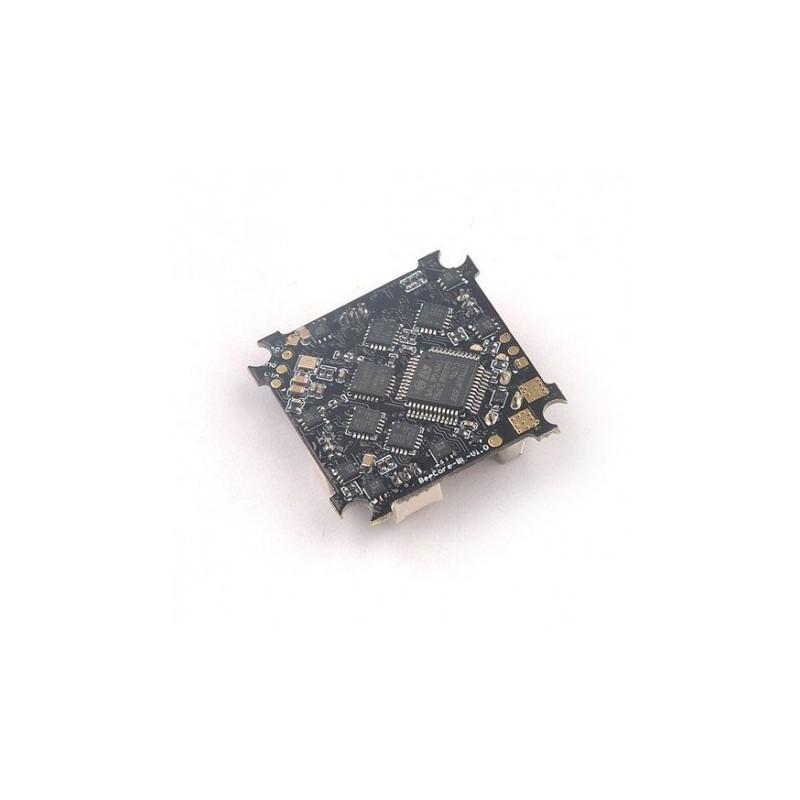

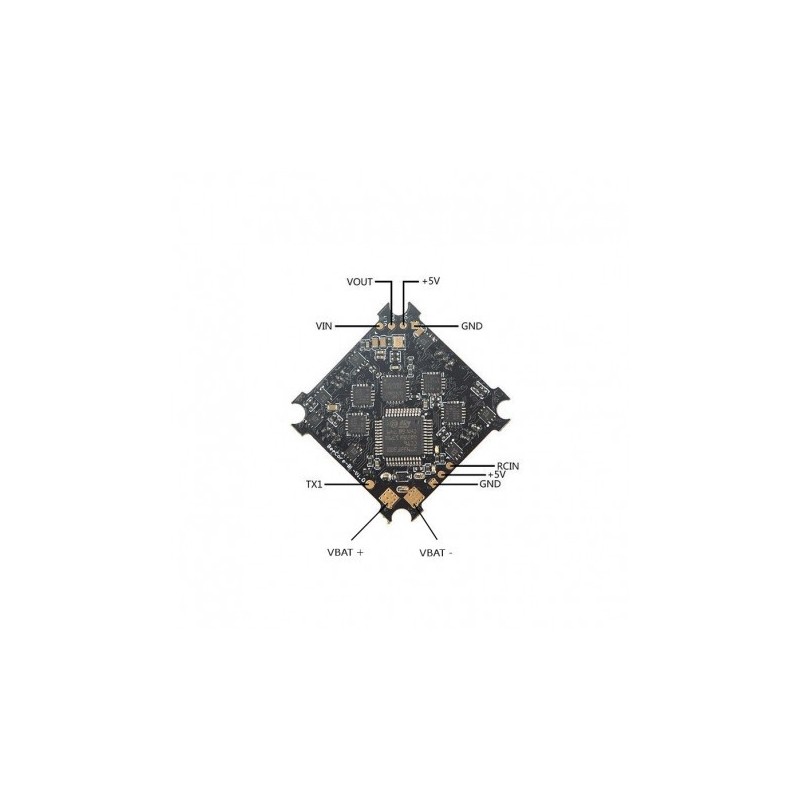

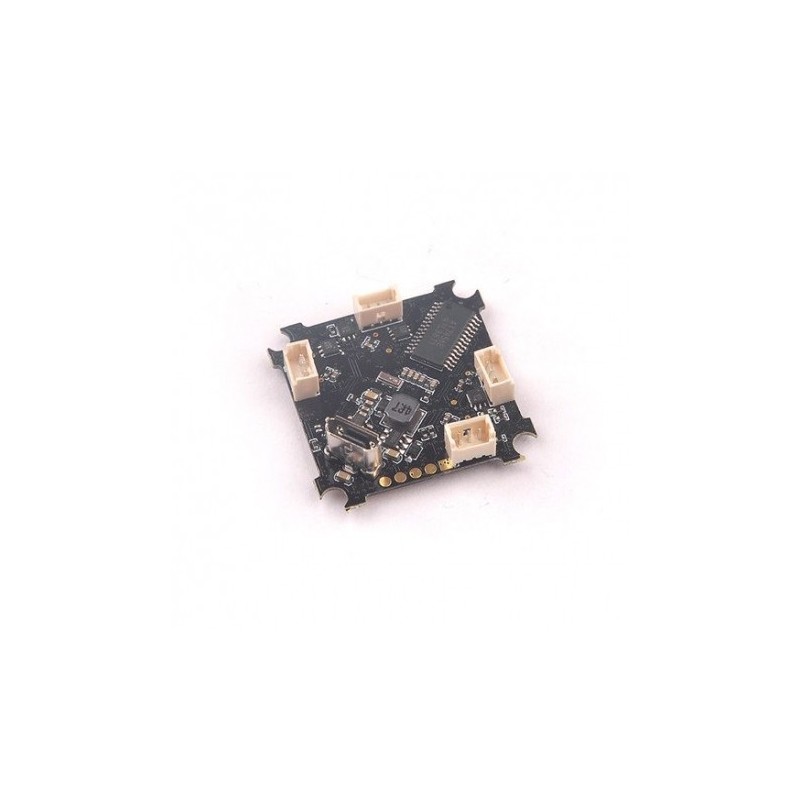

Beecore F3 1S brushless flight controller with OSD and ESC 4 in 1
Recipient :
* Required fields
or Cancel
Beecore F3 flight controller for Tiny whoop drone. Includes an OSD for Betaflight and a 4 in 1 ESC configurable on BLheli for Brushless 1S engines. Standard format for tiny whoop.
| Brand | Happymodel |
| Size | 29*29 mm |
| Flight controller | Beecore F3 |
| Firmwares FC | Betaflight_3.2.1_OMNIBUS |
| ESC | ESC 4 en 1 1S BLHeliSuite |
| Firmwares ESC | O_L_5_REV16_6.HEX |
| Weight | 3.2 g |
| Sensors | MPU-6000 |
| Video Transmission | OSD Betaflight intégré |
| Radio control | PPM, SBUS, IBUS, Spektrum DSM2 / DSMX, 1024/2048 |
| Compatibility | Betaflight / BLheli |
| Max Courant continu (a) | 6A 3 sec |

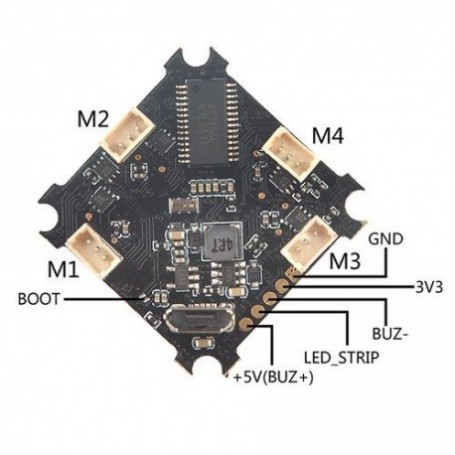

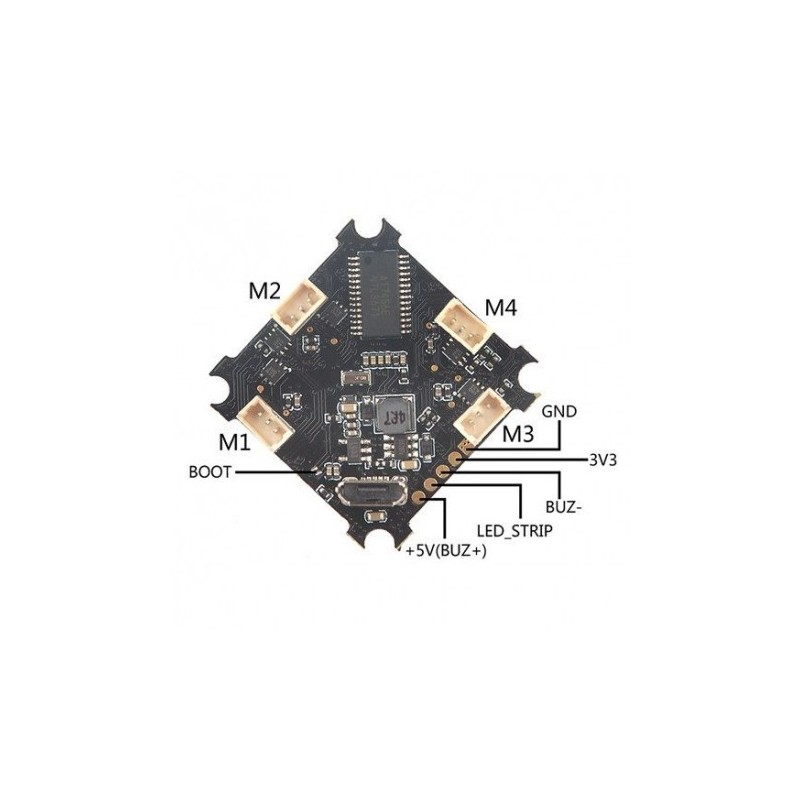

| Connectors | 4 * JST 1.25mm 3 pins |
| Processor | STM32F303CCT6 (72MHZ, 256K FLASH) |
| Lipo Nb Cellules supportées (S) | 1S |

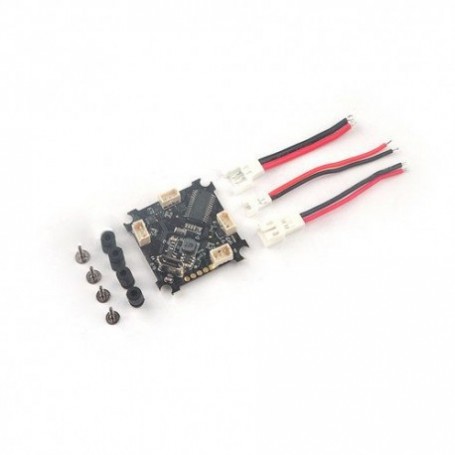

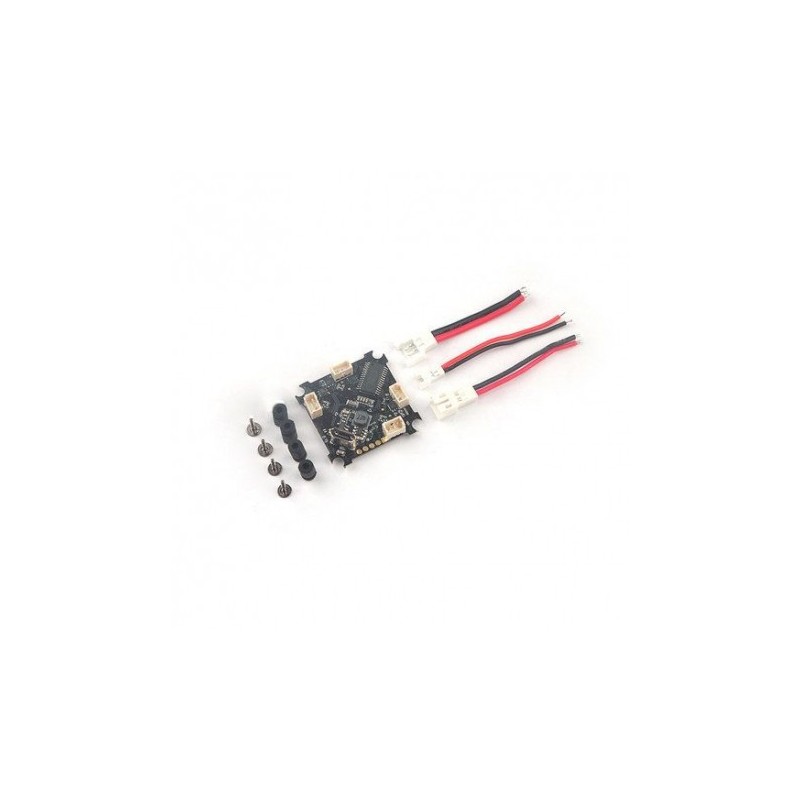

| Package content | 1 * Beecore F3 FC - 1 * Supports and screws set -1 * Cables set |
